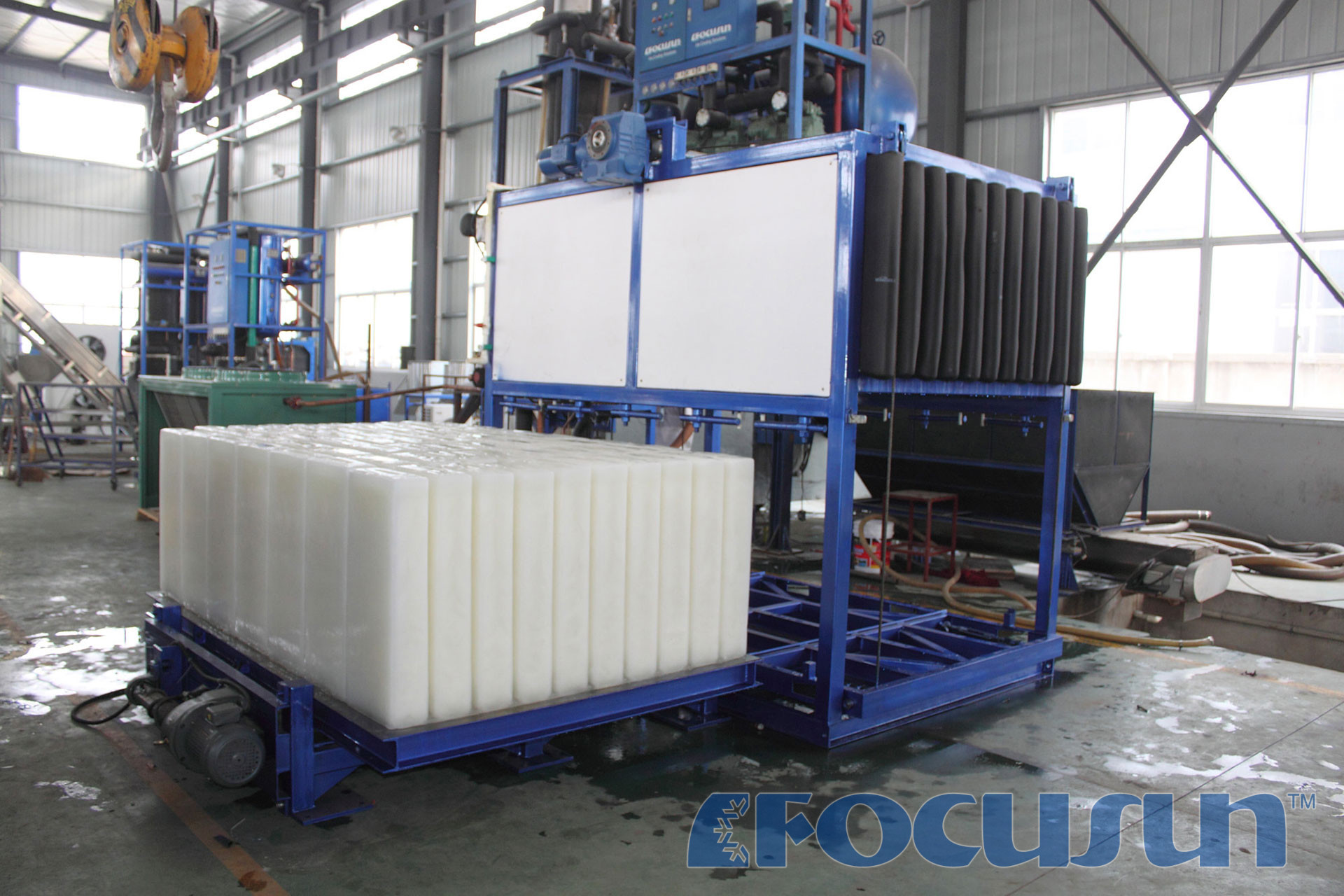

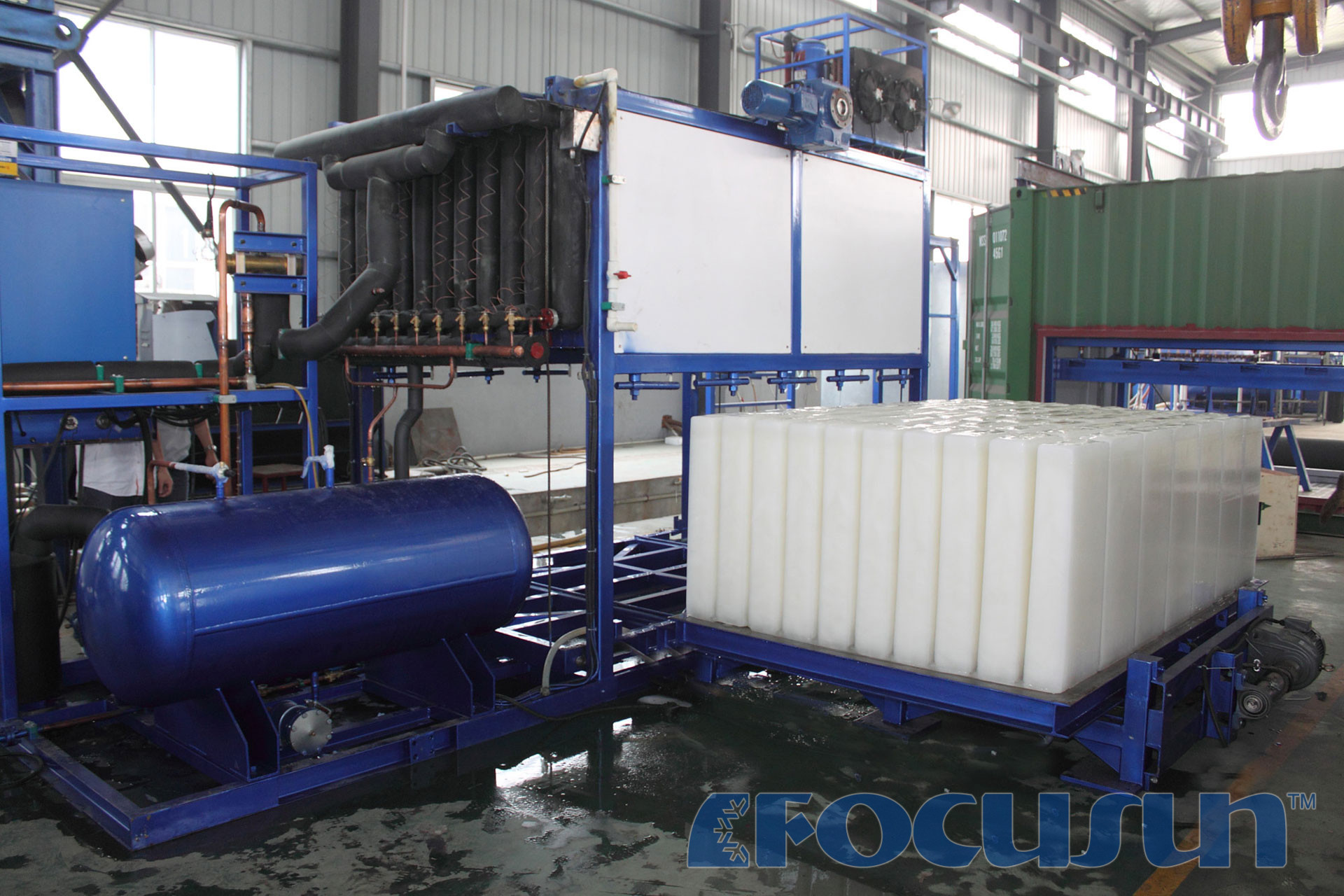

Focusun 3.5T Direct refrigeration block ice machine
Welcome inquiry：+86 021 51089946
Description of product：
Daily capacity：3.5T
Ice weight：10,15,20,25kg
Voltage：380V/3P/50hz
Electrical consumption：67KWH/T
Cooling way：air cooling/water cooling
Refrigerant：R22/R404a
Containerized style：20ft
Features：be edible, meet food standards
Technical parameter:
| Subject | Unit | Technical parameter | |
| Power supply | Voltage/Phase/Frequency | 380V/3P/50Hz | |
| Refrigerant | R22 or R404A | ||
| Capacity | Kg/day | 3750 | |
| Temperature | Ambient temperature | ℃ | 35 |
| Waterinlet temperature | ℃ | 20 | |
| Operating power | Total running power | Kw | 14.85 |
| Installment power | Kw | 18 | |
| Operating power of cold water pump | Kw | 0.35 | |
| Compressor | Manufacturer | Bitzer | |
| Refrigeration capacity | Kw | 27.6 | |
| Operating power | Kw | 12.1 | |
| Compressor COP/EER | Kw/kw | 2.28 | |
| Horse power | Hp | 25 | |
| Condenser | Fan power | Kw | 2.4 |
| Cooling way | Air cooling | ||
| Working time | Ice making time | h | 7.5 |
| Ice falling off time | h | 0.5 | |
| Dimension | Weight of each block | Kg/block | 25 |
| Size of block ice | (L×W×H)(mm) | 315×125×700 | |
| Size of ice maker | (L×W×H)(mm) | 3600×1650×2000 | |
| Size of water feeding pipe | 3/4" | ||
| Operating weight of block ice maker | Kg | 2100 | |
| Water supply pressure requirement | Bar | 1 | |
