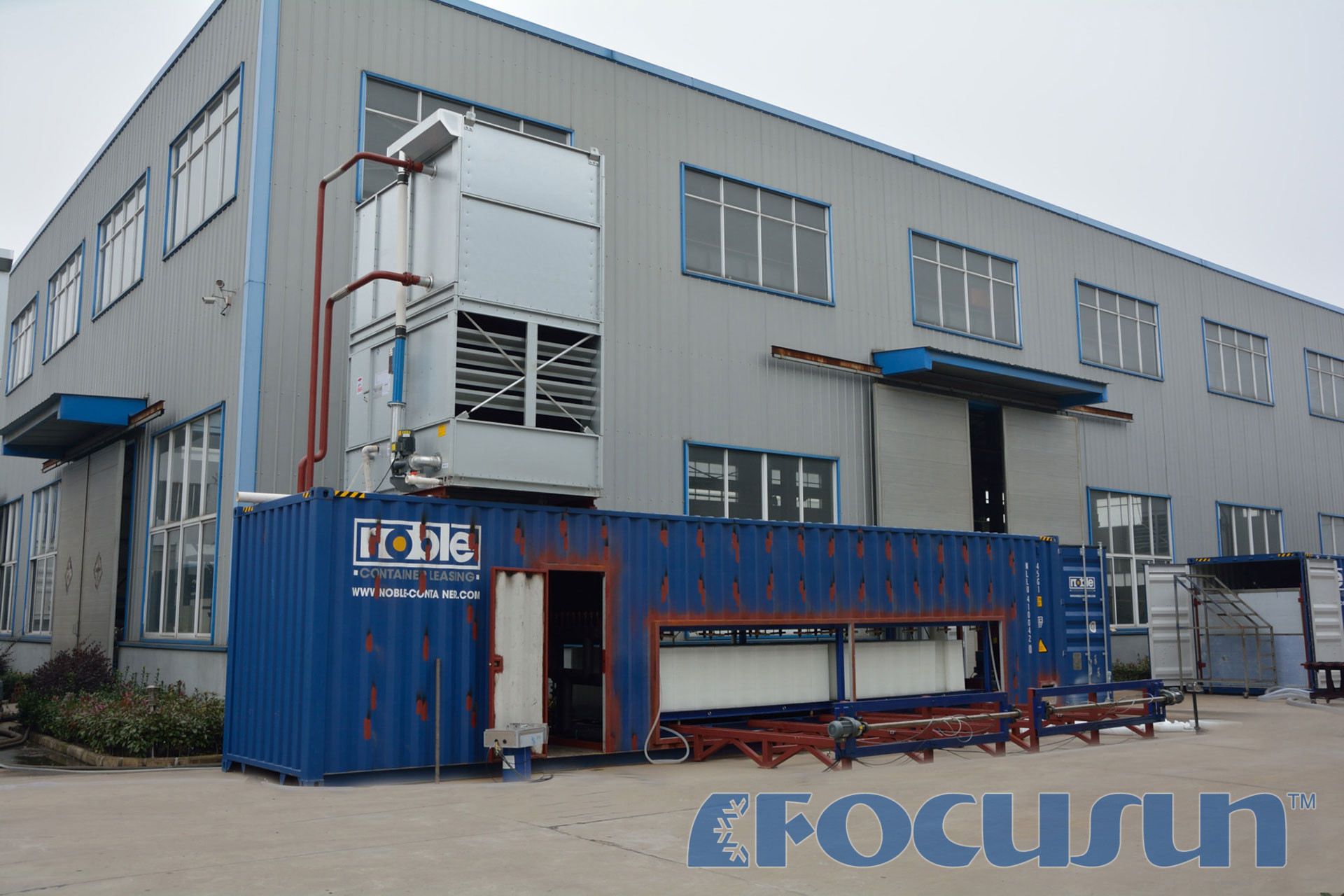

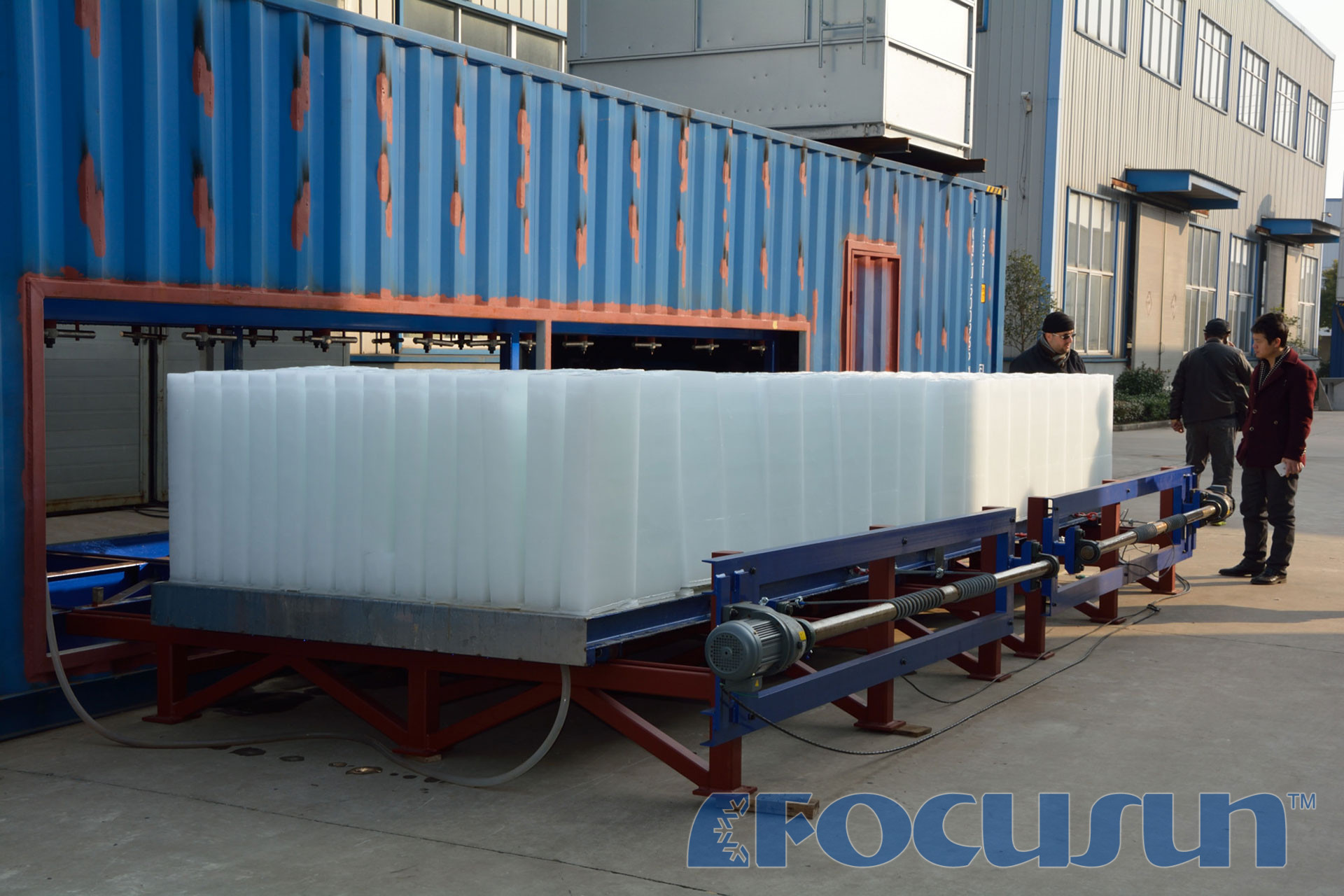

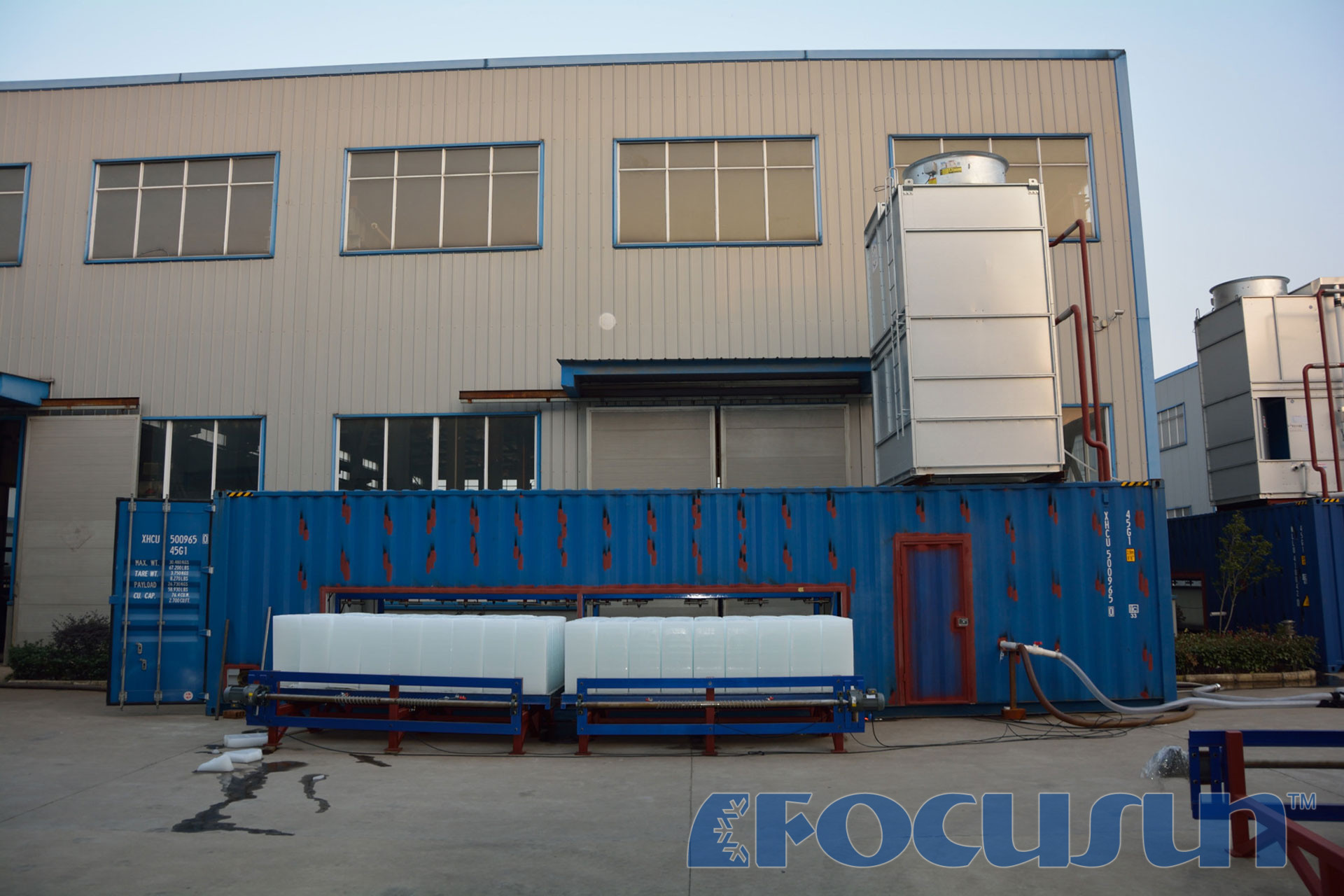

Focusun 20T Containerized direct block ice machine

Welcome inquiry：+86 021 51089946

Description of product：

Daily capacity：20T

Ice weight：25，50kg

Voltage：380V/3P/50hz

Electrical consumption：63KWH/T

Cooling way：air cooling/water cooling/evaporative cooling

Refrigerant：R22/R404a

Containerized style：40ft

Features：be edible, meet food standards

Features

The inside and water contacting part of the pool is made of aluminum. It does not rust.

Hot fluoride deicing, more energy efficient, low power consumption, only need 25 minutes for ice doffing.

Automatic ice making and deicing process, reduce labor costs, save time and effort.

Easy to install, convenient to move, there is no need to build houses to place the machine and can be transported in trucks or ships.

Modular design, piping and circuit are connected completely and easy to operate, anyone who has no experience can operate easily.

New ISO transport containers, in line with CE certification, ISO9001-2008 quality system certification.

Model:FIB-200DC

ITEM		UNIT	TECHNICAL PARAMETER
Input power		voltage/phase/HZ	380V/3P/50Hz
Refrigerant			R22 or R404A
Ice field		Kg/day	200000
Cooling way			Water cooling
Temperature	Ambient temperature	℃	35
Temperature	Water Inlet temperature	℃	20
Running power	Total running power	kw	65.3
	Installed power	kw	95
	Cooling tower fan	kw	1.5
	Water cooling pump	kw	5.5
	Water cooling pump power	kw	0.75
Compressor	Manufacture		Bitzer
	Refrigerating capacity	kw	135.8
	Running power	kw	68.9
	Compressor COP/EER	Kw/kw	2.3
	Horsepower	Hp	40×3sets
Working time	Ice making time	hour（h）	7.5
Working time	Ice doffing time	hour（h）	0.5
Outline size	Weight of block ice	Kg/block	50
	Block ice machine outline size	(length×width×height)(mm)	480×160×700
	Machine modular outline size	(length×width×height)(mm)	2000×1200×1600
	Evaporator module quantity		3pieces
	Evaporator module outline size	(length×width×height)(mm)	4800×1000×2200
	Cooling tower outline size	（external diameter×height）（mm）	Ф2175×2565
	Dimensions of water supply pipe cooling tower		3/4”
	Cooling water pipe size		4”
	Inlet pipe size of ice machine		1-1/4”
Running weight	Machine unit	kg	2560
	Evaporator	kg	11440
	Cooling tower	kg	1120
Water pressure requirements		Bar	1
