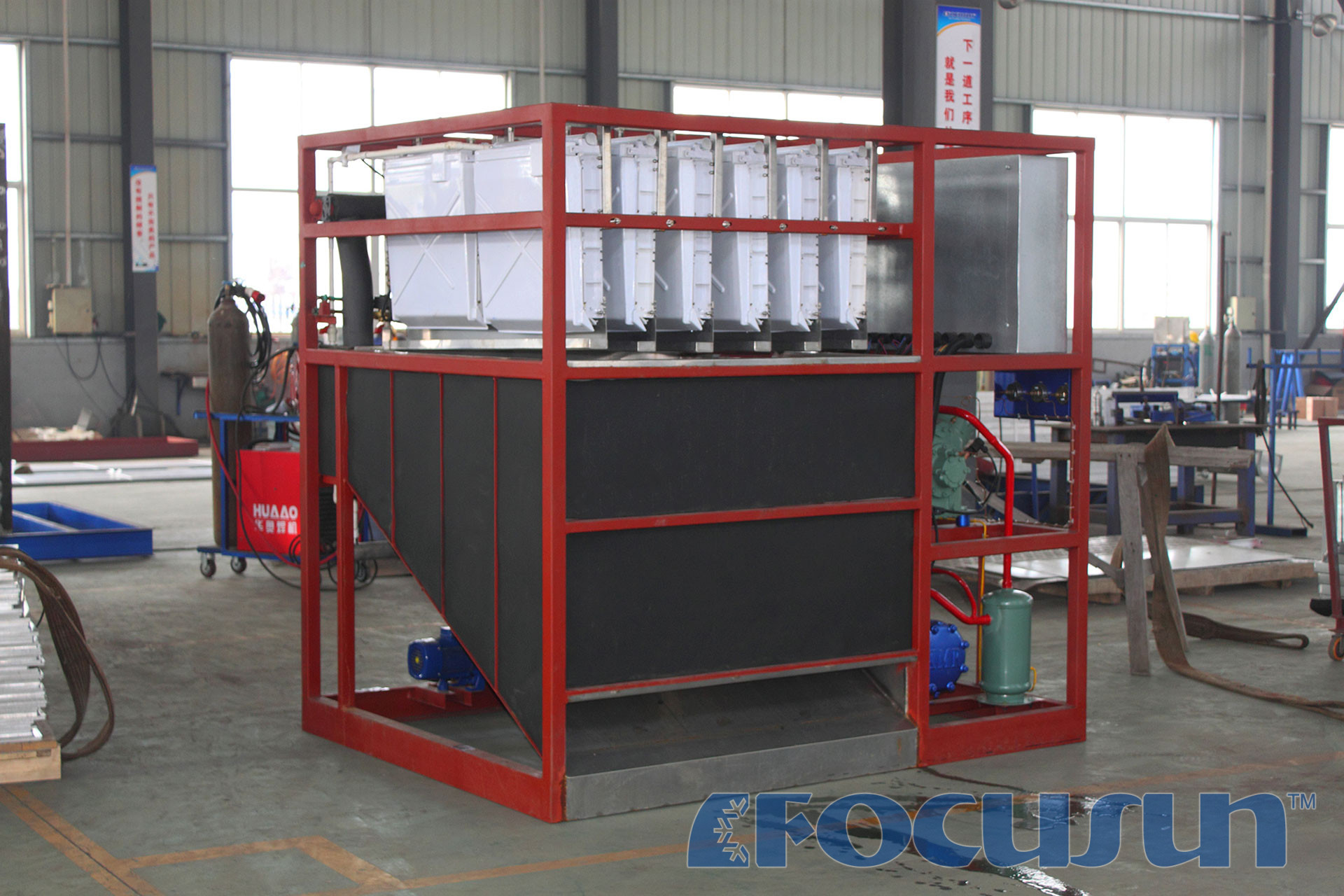

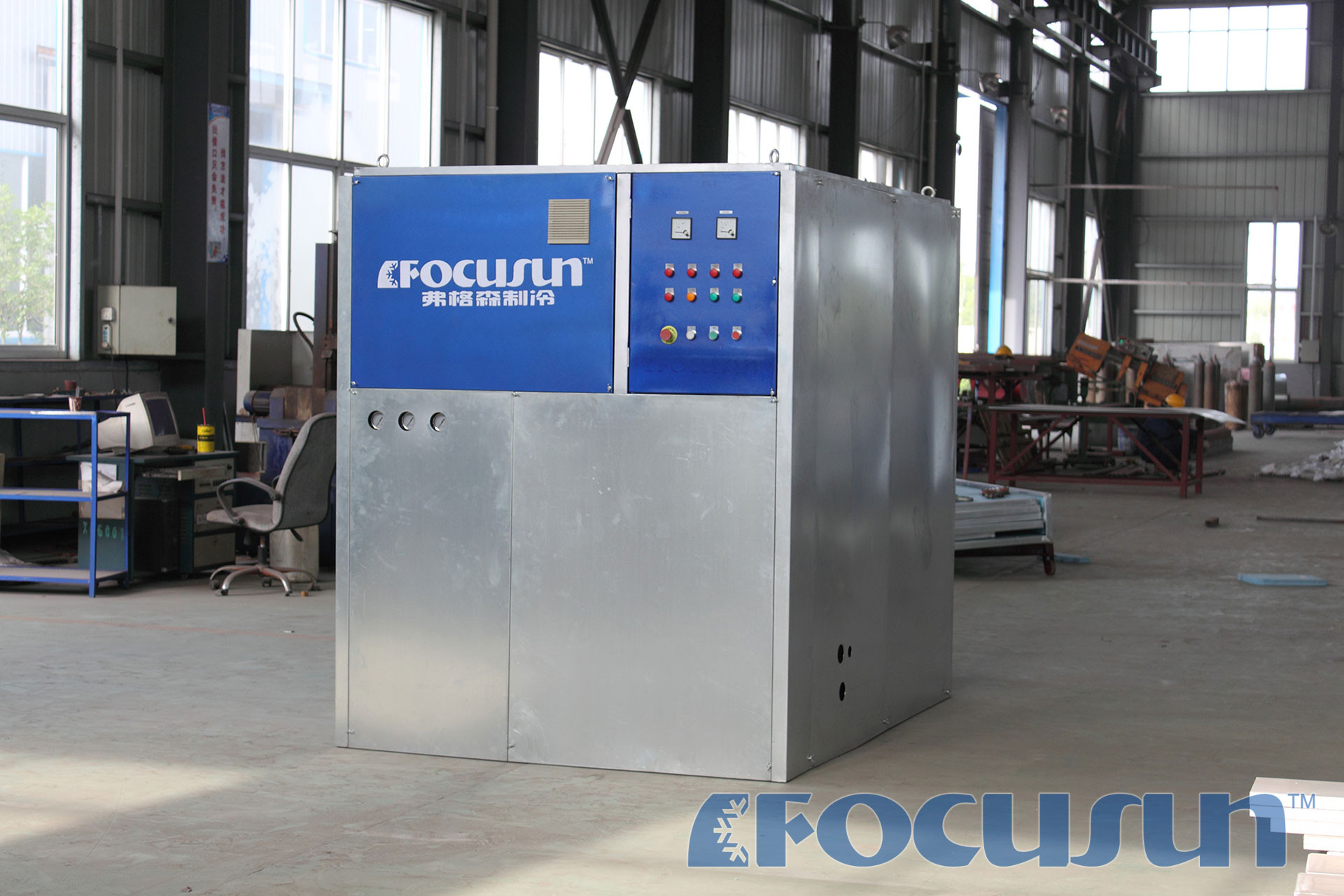

Focusun 8T Industrial cube ice machine
Welcome inquiry：+86 021 51089946
Description of product：
Daily capacity：8T
Voltage：380V/3P/50hz
Cooling way：air cooling/water cooling
Refrigerant：R22/R404a
Cube ice size：22*22*22mm or 28*28*22mm
Cube ice features：Cube ice is thick and transparent with long storage period. It isn't likely to melt in a short time.
Application：Daily eating, keeping vegetable and seafood fresh, laboratory and medical applications, etc.
Feature：
Using hot fluorine deicing method, the deicing speed is fast, and the whole deicing process only takes 150-180 seconds；
Increase the deicing and drainage function, and instantly drain the remaining water in the cold water tank when removing ice, making the ice more clean and transparent.；

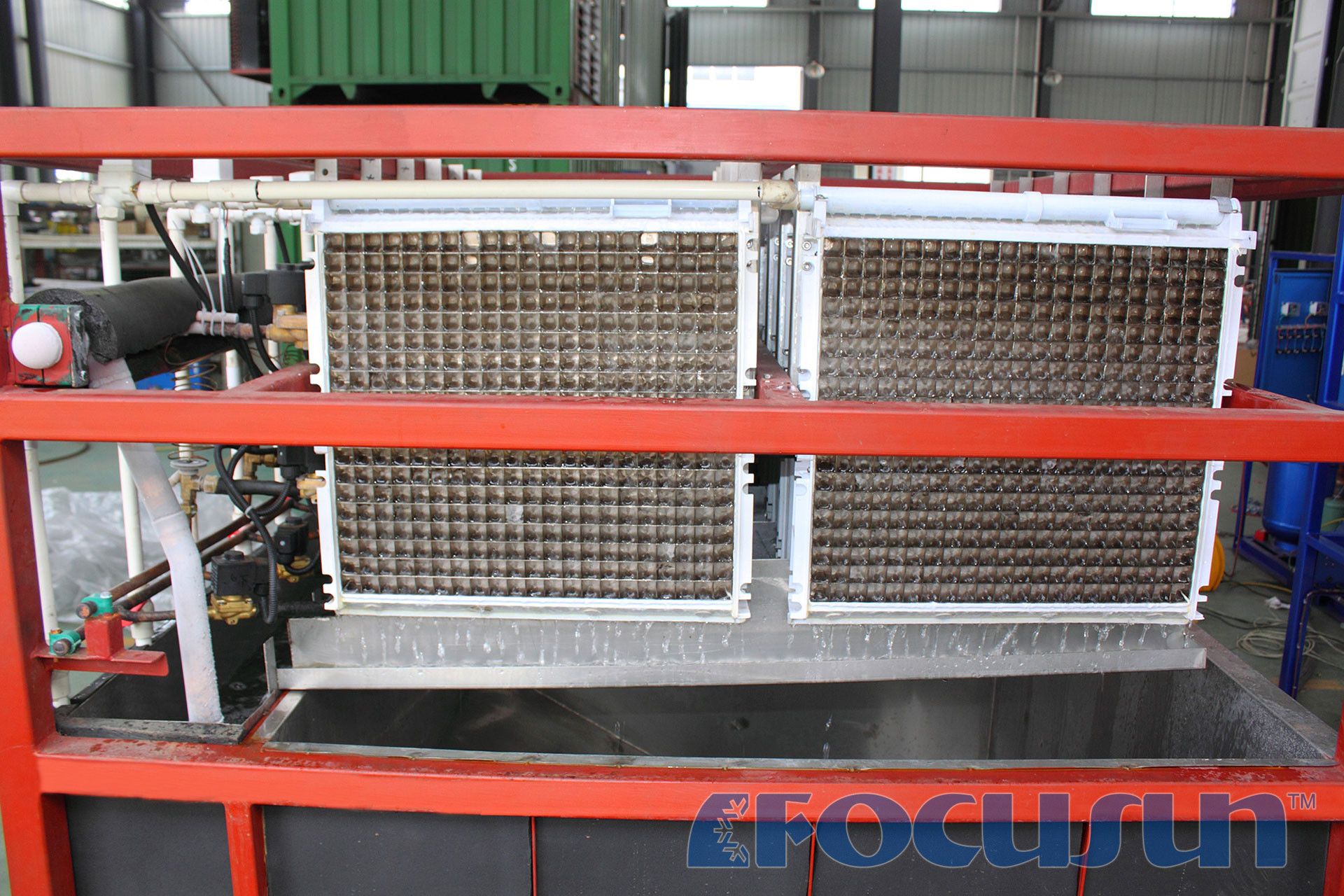

The evaporator tube is made of stainless steel SUS304, which is completely suitable for food hygiene requirements.
Technical parameters：
| Subject | Unit | Technical parameter | |
| Power supply | Voltage/Phase/Frequency | 380V/3P/50Hz | |
| Refrigerant | R22 or R404A | ||
| Capacity | Kg/day | 8000 | |
| Temperature | Ambient temperature | ℃ | 35 |
| Waterinlet temperature | ℃ | 20 | |
| Operating power | Total running power | Kw | 24.35 |
| Installment power | Kw | 30 | |
| Operating power of cutter | Kw | 0.55 | |
| Operating power of cold water pump | Kw | 1.2 | |
| Compressor | Manufacturer | Bitzer | |
| Refrigeration capacity | Kw | 52.5 | |
| Operating power | Kw | 20.8 | |
| Compressor COP/EER | Kw/kw | 2.53 | |
| Horse power | Hp | 40 | |
| Condenser | Fan power | Kw | 1.8 |
| Cooling way | Air cooling | ||
| Dimension | Size of ice maker | (L×W×H)(mm) | 2000×1450×2200 |
| Size of condenser | (L×W×H)(mm) | 2550×1200×1350 | |
| Size of water feeding pipe | 1/2" | ||
| Weight of unit | Operating weight of cube ice maker | Kg | 2100 |
| Operating weight of condenser | Kg | 256 | |
| Water supply pressure requirement | Bar | 1 | |
