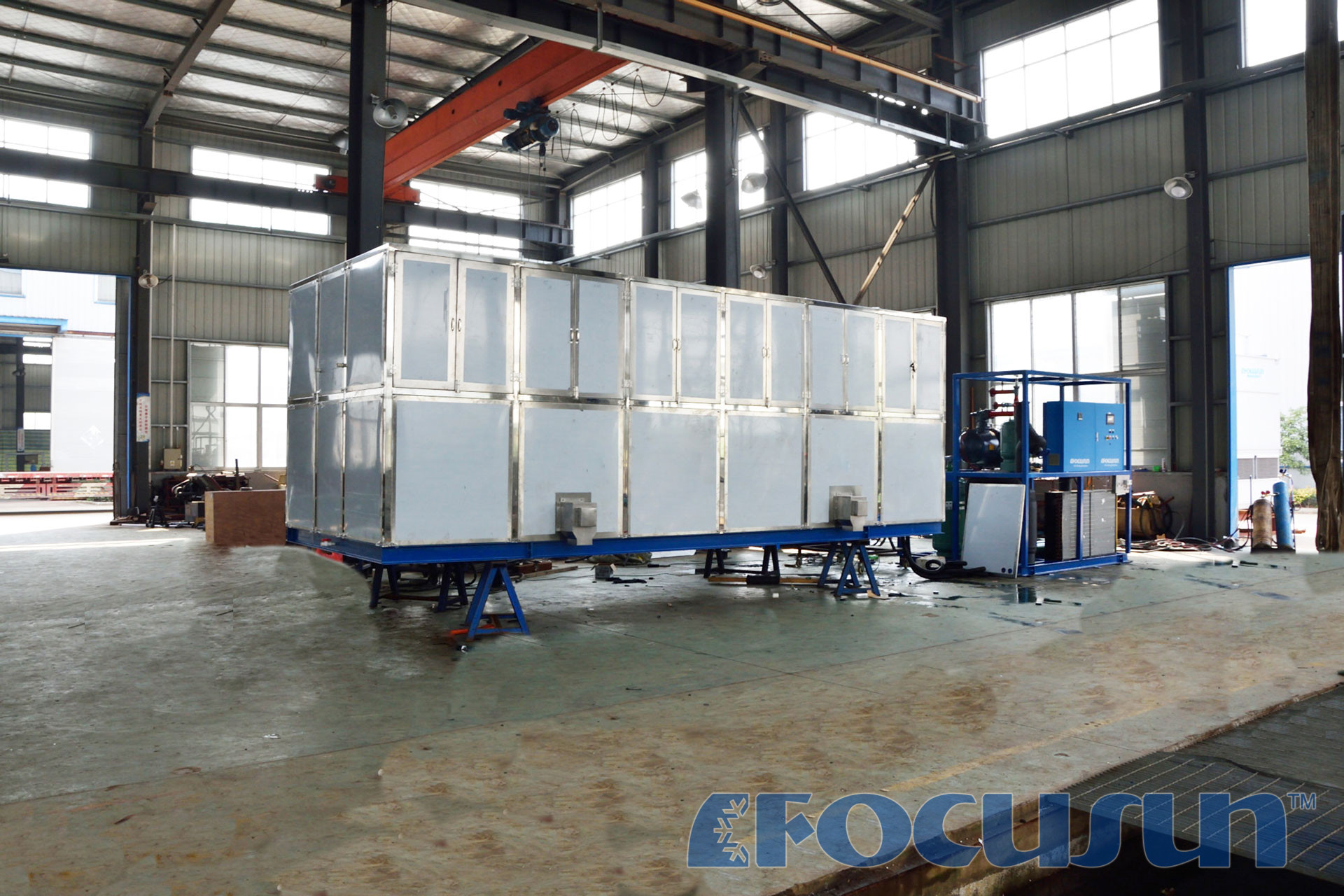

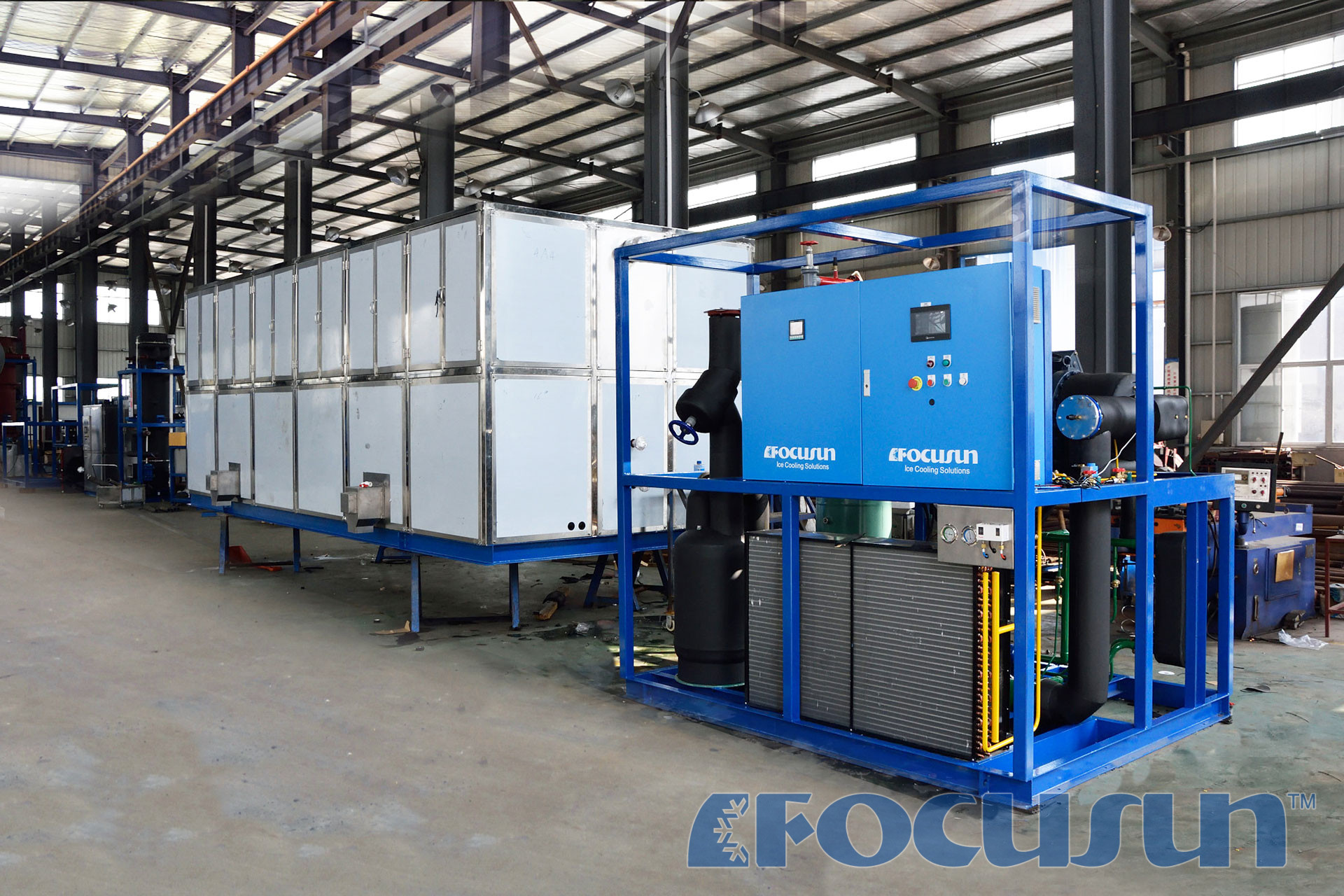

Focusun 20T Industrial cube ice machine
Welcome inquiry：+86 021 51089946
Description of product：
Daily capacity：20T
Voltage：380V/3P/50hz
Cooling way：air cooling/water cooling/evaporative cooling
Refrigerant：R22/R404a

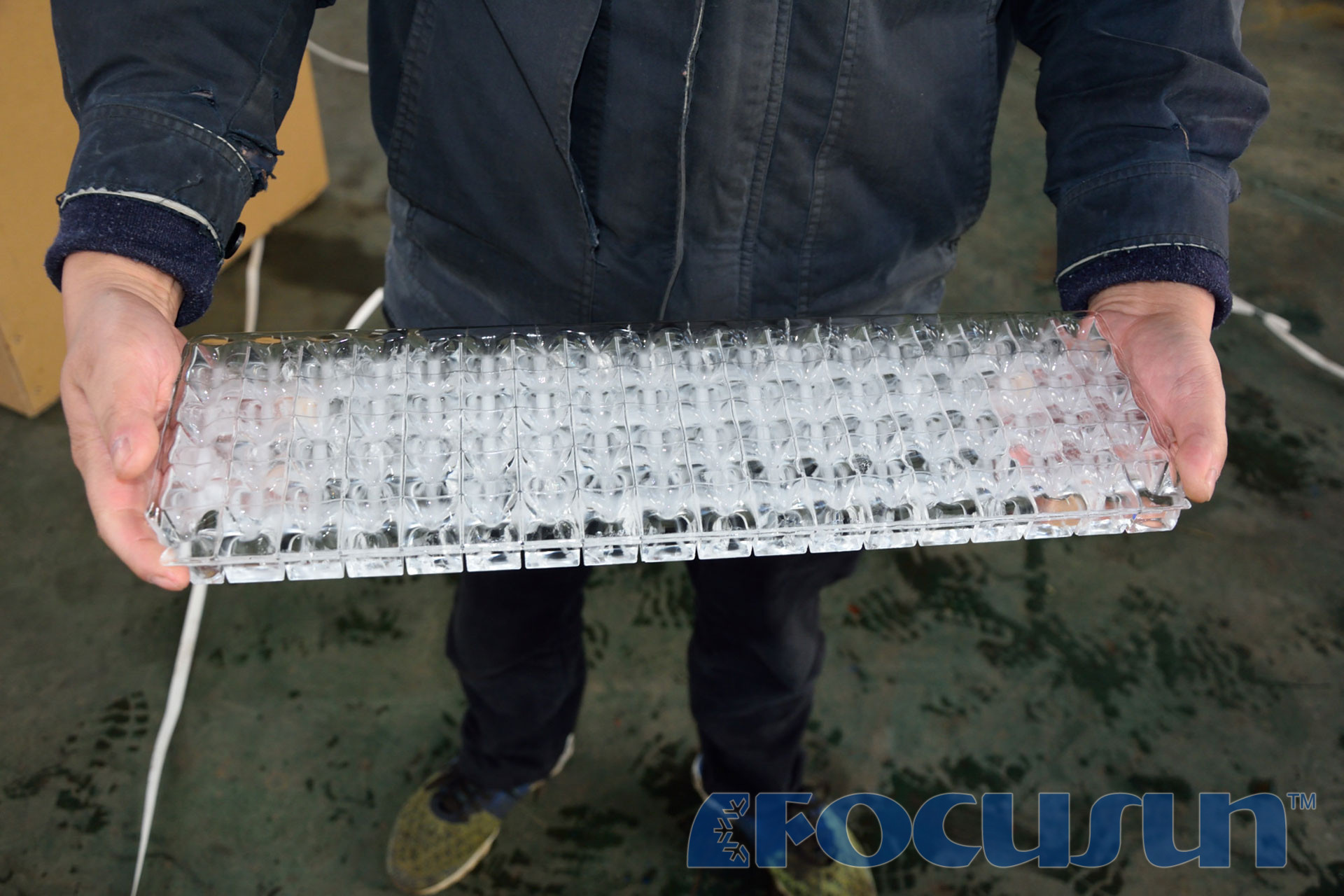

Cube ice size：22*22*22mm or 28*28*22mm
Cube ice features：Cube ice is thick and transparent with long storage period. It isn't likely to melt in a short time.
Application：Daily eating, keeping vegetable and seafood fresh, laboratory and medical applications, etc.
Feature：
Using hot fluorine deicing method, the deicing speed is fast, and the whole deicing process only takes 150-180 seconds；
Increase the deicing and drainage function, and instantly drain the remaining water in the cold water tank when removing ice, making the ice more clean and transparent.；
The evaporator tube is made of stainless steel SUS304, which is completely suitable for food hygiene requirements.
Technical parameters：
| Subject | Unit | Technical parameter | |
| Power supply | Voltage/Phase/Frequency | 380V/3P/50Hz | |
| Refrigerant | R22 or R404A | ||
| Capacity | Kg/day | 20000 | |
| Temperature | Ambient temperature | ℃ | 35 |
| Water inlet temperature | ℃ | 20 | |
| Operating power | Total running power | Kw | 68.5 |
| Installment power | Kw | 85 | |
| Operating power of cutter | Kw | 1.5 | |
| Operating power of cold water pump | Kw | 2.2 | |
| Fan motor of cooling tower | Kw | 1.5 | |
| Operating power of cold water pump | Kw | 3.7 | |
| Compressor | Manufacturer | Bitzer | |
| Refrigeration capacity | Kw | 148.6 | |
| Operating power | Kw | 59.6 | |
| Compressor COP/EER | Kw/kw | 2.5 | |
| Horse power | Hp | 50×2 | |
| Cooling way | Water cooling | ||
| Dimension | Size of ice maker | (L×W×H)(mm) | Unit:2200×2000×1800 |
| Evaporator:1350×1350×4600 | |||
| Size of cooling tower | (O.D.×H)(mm) | Φ2175×2565 | |
| Size of liquid pipe of cooling tower | 3/4" | ||
| Size of cooling water pipe | 2-1/2" | ||
| Size of waterinlet pipe of ice maker | 1" | ||
| Size of ice outlet | mm | 400×300 | |
| Weight of unit | Operating weight of cube ice maker | Kg | Unit:2260 |
| Evaporator:3650 | |||
| Operating weight of cooling tower | Kg | 1120 | |
| Water supply pressure requirement | Bar | 1.5 | |
