Focusun 3T Fresh water flake ice machine
Welcome inquiry：+86 021 51089946
Description of product：
Daily capacity：3T
Voltage：380V/3P/50hz
Cooling way：air cooling/water cooling
Refrigerant：R22/R404a
Water source：fresh water

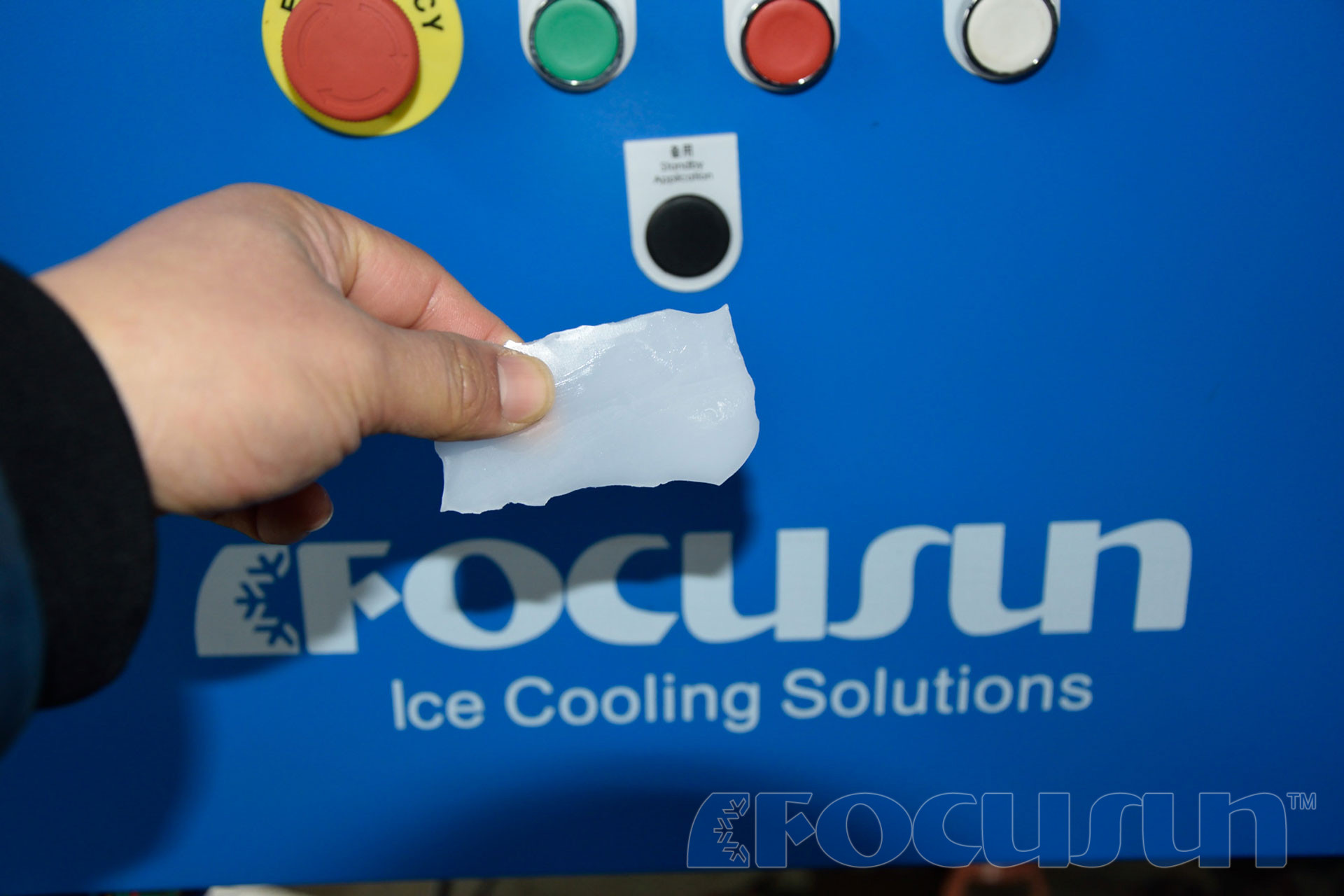

Flake ice features：The thin ice has advantages of large contact area and fast cooling speed, is easy to crush and mold.
Application：Supermarket fresh table display preservation; meat processing industry; food processing industry; aquatic product processing industry.
System solutions：ice storage room，water chilling machine，flake ice compactor
Features：
Flake ice is dry, not easy to agglomerate, and has good fluidity;
Two types of cooling methods, air-cooled and water-cooled, can be selected to meet different needs of customers;
It is easy to install on site, only need to provide water source and power supply;

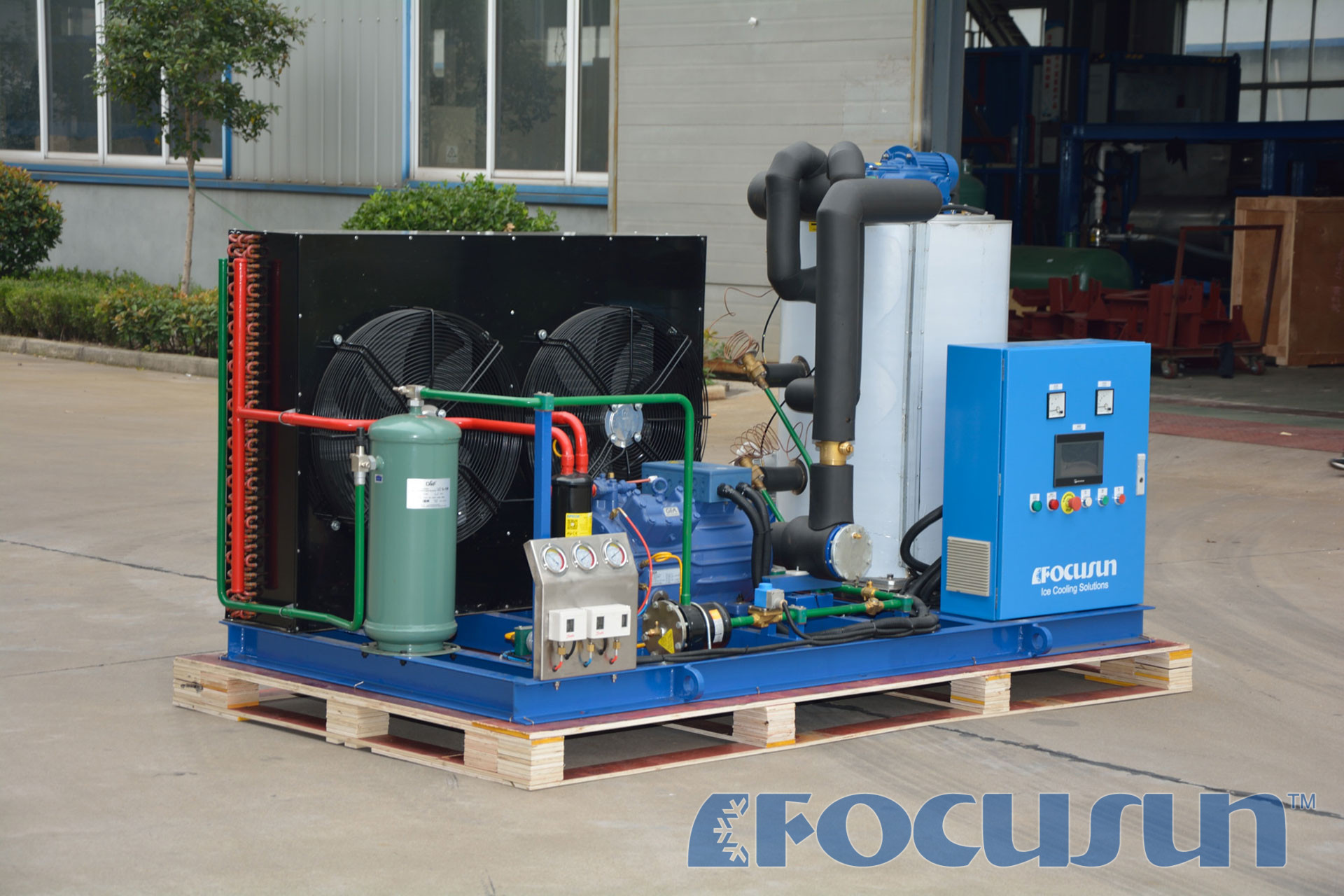

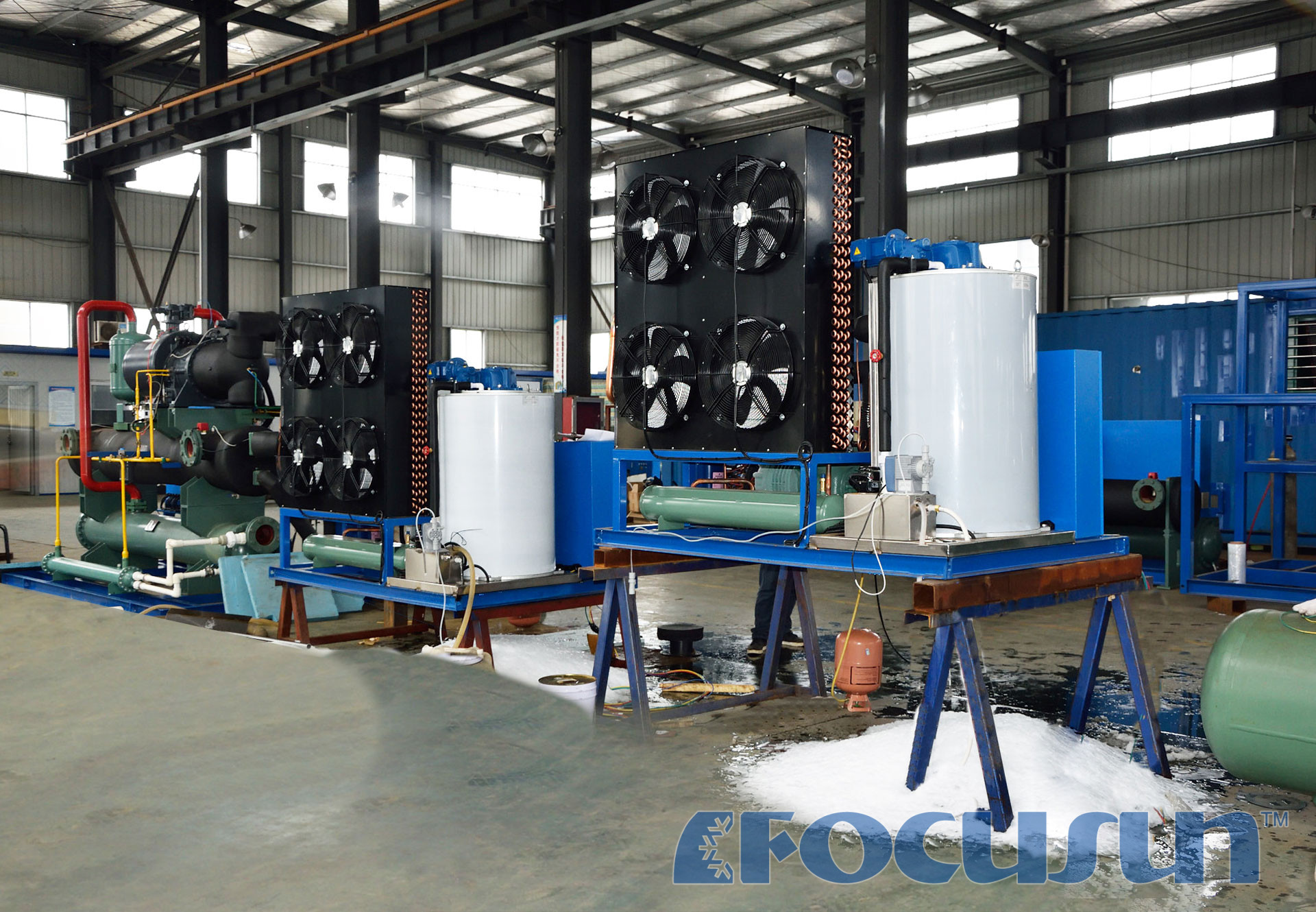

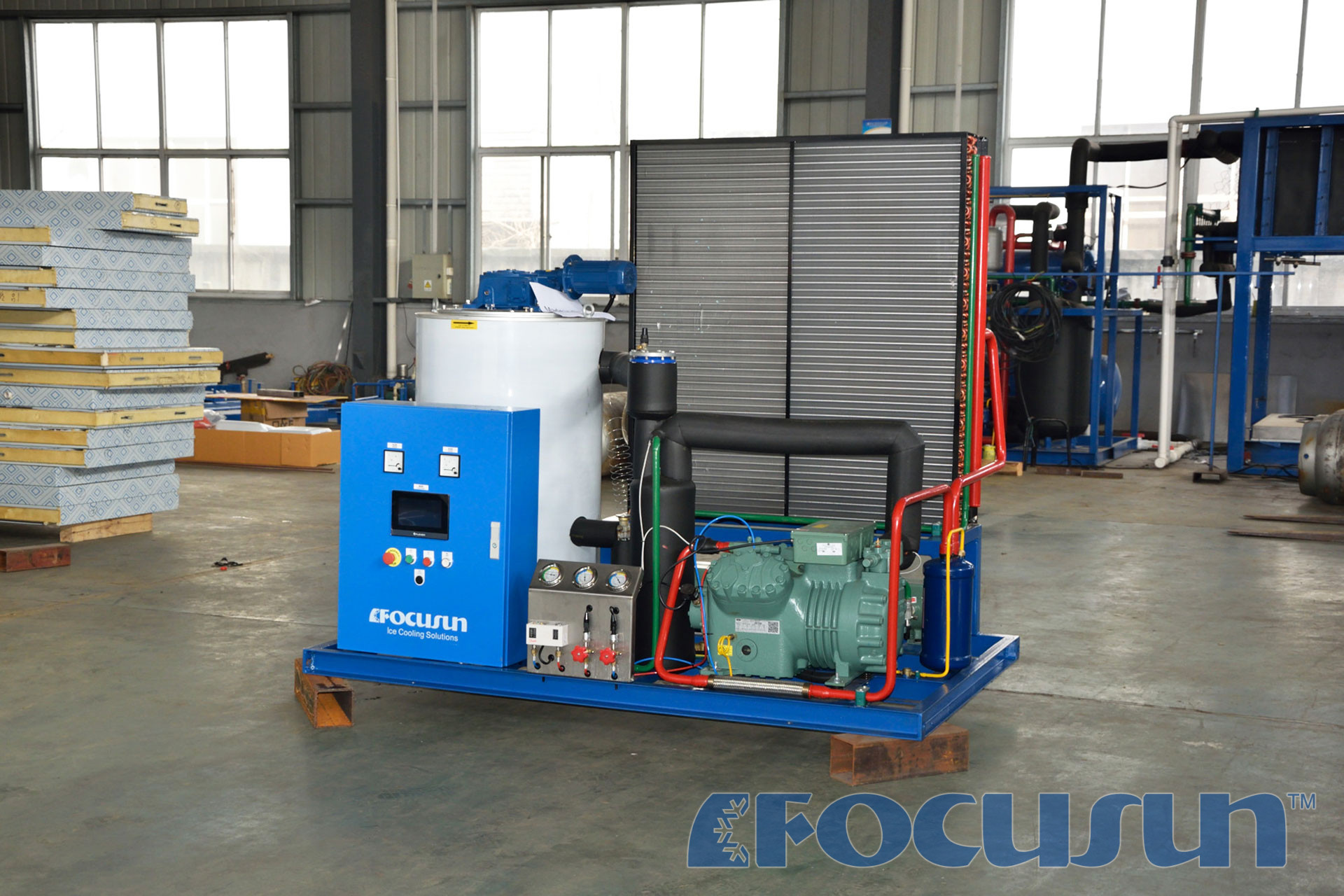

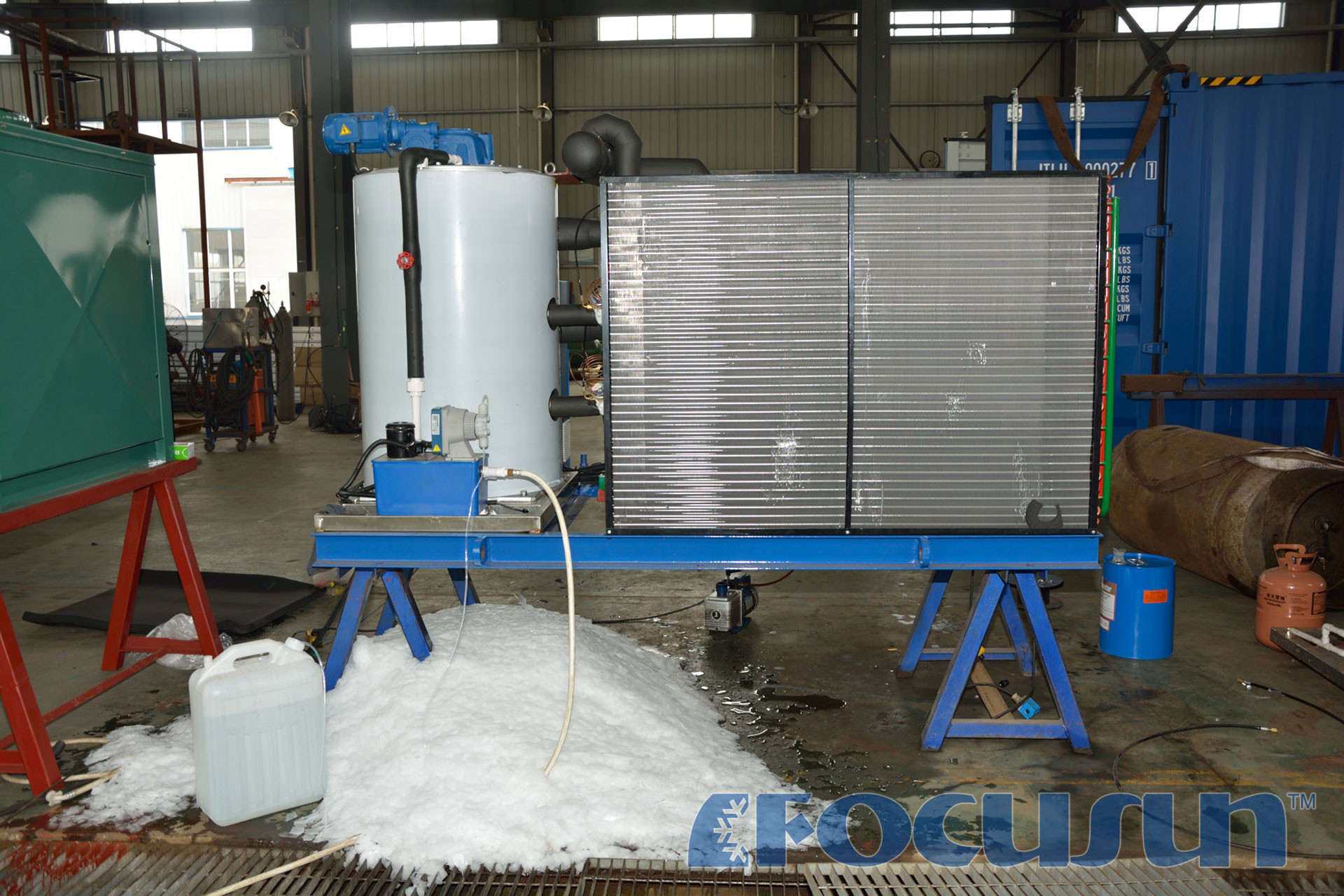

All equipment is mounted on a steel frame for easy transportation.
Technical parameters：
| Subject | Unit | Technical parameter | |
| Power supply | Voltage/Phase/Frequency | 380V/3P/50Hz | |
| Refrigerant | R22 or R404A | ||
| Capacity | Kg/day | 3000 | |
| Cooling way | Water cooling | ||
| Temperature | Ambient temperature | ℃ | 35 |
| Waterinlet temperature | ℃ | 20 | |
| Compressor | Manufacturer | Bitzer | |
| Refrigeration capacity | Kw | 16.8 | |
| Total running power | Kw | 7.96 | |
| Compressor COP/EER | Kw/kw | 2.11 | |
| Horse power | Hp | 12 | |
| Operating power | Total running power | Kw | 9.29 |
| Installment power | Kw | 11 | |
| Operating power of reducer | Kw | 0.37 | |
| Operating power of cold water pump | Kw | 0.03 | |
| Cooling water pump | Kw | 0.75 | |
| Fan of cooling tower | Kw | 0.18 | |
| Dimension | Size of ice maker | (L×W×H)(mm) | 1700×900×1200 |
| Size of cooling tower | (O.D.×H)(mm) | φ1170×1940 | |
| Size of water feeding pipes of cooling tower | 1/2" | ||
| Size of cooling water pipes | 2" | ||
| Size of water feeding pipe | 3/4" | ||
| Size of ice outlet | mm | Φ512 | |
| Weight of unit | Operating weight of flake ice maker | Kg | 950 |
| Operating weight of cooling tower | Kg | 260 | |
| Water supply pressure requirement | Bar | 1.5 | |
