Focusun 20T Fresh water flake ice machine
Welcome inquiry：+86 021 51089946
Description of product：
Daily capacity：20T
Voltage：380V/3P/50hz
Cooling way：air cooling/water cooling/evaporative cooling
Refrigerant：R22/R404a
Water source：fresh water
Container：20ft

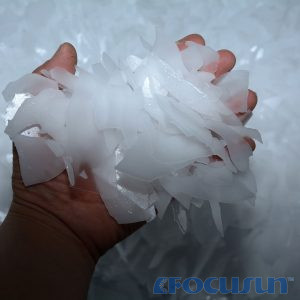

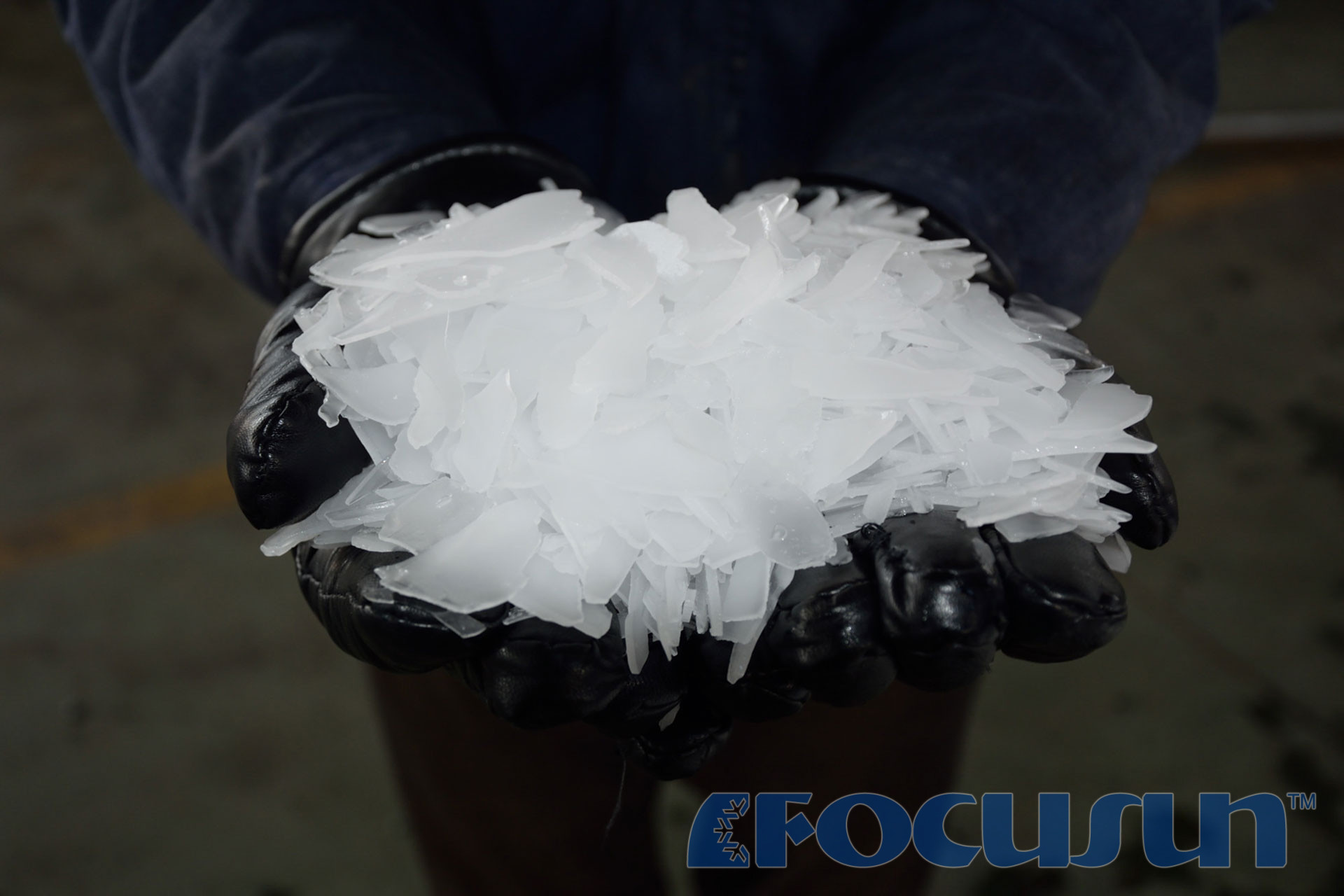

Flake ice features：The thin ice has advantages of large contact area and fast cooling speed, is easy to crush and mold.
Application：Supermarket fresh table display preservation; meat processing industry; food processing industry; aquatic product processing industry.
System solutions：rake ice storage room，water chilling machine，flake ice compactor
Features：
Flake ice is dry, not easy to agglomerate, and has good fluidity;
Two types of cooling methods, air-cooled and water-cooled, can be selected to meet different needs of customers;
It is easy to install on site, only need to provide water source and power supply;
All equipment is mounted on a steel frame for easy transportation.
Technical parameter：
| Subject | Unit | Technical parameter | |
| Power supply | Voltage/Phase/Frequency | 380V/3P/50Hz | |
| Refrigerant | R22 or R404A | ||
| Capacity | Kg/day | 20000 | |
| Cooling way | Water cooling | ||
| Temperature | Ambient temperature | ℃ | 35 |
| Waterinlet temperature | ℃ | 20 | |
| Compressor | Manufacturer | Bitzer | |
| Refrigeration capacity | Kw | 108 | |
| Total running power | Kw | 53.16 | |
| Compressor COP/EER | Kw/kw | 2.03 | |
| Horse power | Hp | 30×3sets | |
| Operating power | Total running power | Kw | 60.41 |
| Installment power | Kw | 80 | |
| Operating power of reducer | Kw | 1.5 | |
| Operating power of cold water pump | Kw | 0.55 | |
| Cooling water pump | Kw | 3.7 | |
| Fan of cooling tower | Kw | 1.5 | |
| Dimension | Size of ice maker | (L×W×H)(mm) | 4200×2000×2914 |
| Size of cooling tower | (O.D.×H)(mm) | Φ2175×2565 | |
| Size of water feeding pipes of cooling tower | 3/4" | ||
| Size of cooling water pipes | 3" | ||
| Size of water feeding pipe | 3/4" | ||
| Size of ice outlet | mm | Φ1425 | |
| Weight of unit | Operating weight of flake ice maker | Kg | 3600 |
| Operating weight of cooling tower | Kg | 1120 | |
| Water supply pressure requirement | Bar | 1.5 | |
